      B站视频讲解

      本文主要首先介绍一篇年代久远但意义重大的论文A Neural Probabilistic Language Model(2003),然后给出PyTorch实现

      A Neural Probabilistic Language Model

      本文算是训练语言模型的经典之作,Bengio将神经网络引入语言模型的训练中,并得到了词向量这个副产物。词向量对后面深度学习在自然语言处理方面有很大的贡献,也是获取词的语义特征的有效方法

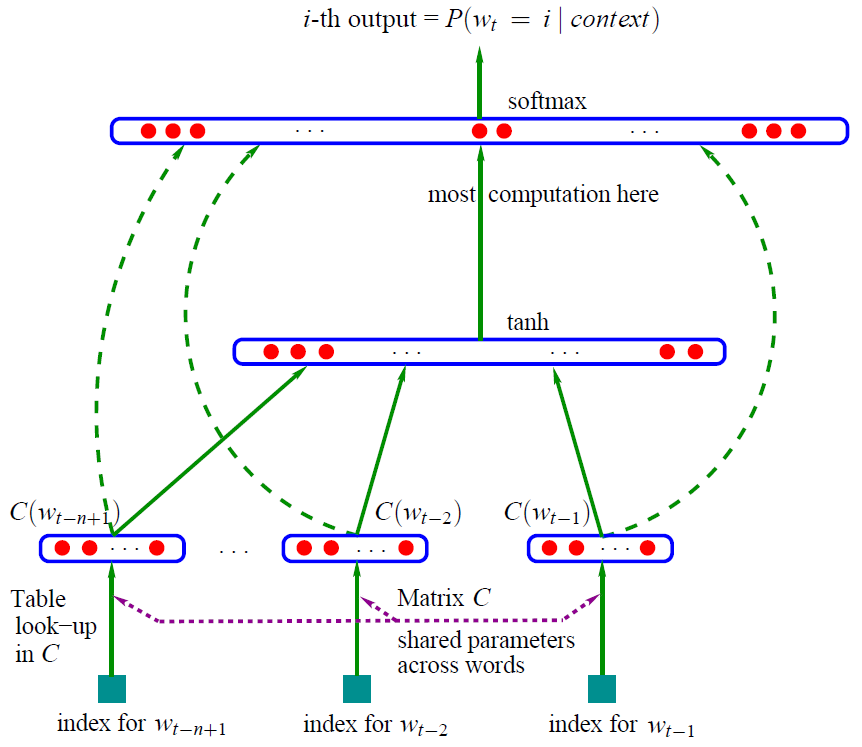

      其主要架构为三层神经网络,如下图所示

      现在的任务是输入wt−n+1,…,wt−1w_{t-n+1},…,w_{t-1}wt−n+1​,…,wt−1​这前n-1个单词,然后预测出下一个单词wtw_twt​

      数学符号说明:

      • C(i)C(i)C(i):单词www对应的词向量,其中iii为词www在整个词汇表中的索引
      • CCC:词向量,大小为∣V∣×m|V|\times m∣V∣×m的矩阵
      • ∣V∣|V|∣V∣:词汇表的大小,即预料库中去重后的单词个数
      • mmm:词向量的维度,一般是50到200
      • HHH:隐藏层的weight
      • ddd:隐藏层的bias
      • UUU:输出层的weight
      • bbb:输出层的bias
      • WWW:输入层到输出层的weight
      • hhh:隐藏层神经元个数

      计算流程:

      1. 首先将输入的n-1个单词索引转为词向量,然后将这n-1个词向量进行concat,形成一个(n-1)*w的向量,用X表示
      2. 将X送入隐藏层进行计算,hiddenout=tanh(d+X∗H)hidden_{out} = tanh(d+X*H)hiddenout​=tanh(d+X∗H)
      3. 输出层共有∣V∣|V|∣V∣个节点,每个节点yiy_iyi​表示预测下一个单词iii的概率,yyy的计算公式为y=b+X∗W+hiddenout∗Uy=b+X*W+hidden_{out}*Uy=b+X∗W+hiddenout​∗U

      代码实现(PyTorch)

      # code by Tae Hwan Jung @graykode, modify by wmathor
      import torch
      import torch.nn as nn
      import torch.optim as optim
      import torch.utils.data as Data

      dtype = torch.FloatTensor

      sentences = [ "i like dog", "i love coffee", "i hate milk"]

      word_list = " ".join(sentences).split() # ['i', 'like', 'dog', 'dog', 'i', 'love', 'coffee', 'i', 'hate', 'milk']
      word_list = list(set(word_list)) # ['i', 'like', 'dog', 'love', 'coffee', 'hate', 'milk']
      word_dict = {w: i for i, w in enumerate(word_list)} # {'i':0, 'like':1, 'dog':2, 'love':3, 'coffee':4, 'hate':5, 'milk':6}
      number_dict = {i: w for i, w in enumerate(word_list)} # {0:'i', 1:'like', 2:'dog', 3:'love', 4:'coffee', 5:'hate', 6:'milk'}
      n_class = len(word_dict) # number of Vocabulary, just like |V|, in this task n_class=7

      # NNLM(Neural Network Language Model) Parameter
      n_step = len(sentences[0].split())-1 # n-1 in paper, look back n_step words and predict next word. In this task n_step=2
      n_hidden = 2 # h in paper
      m = 2 # m in paper, word embedding dim


      由于PyTorch中输入数据是以mini-batch小批量进行的,下面的函数首先将原始数据(词)全部转为索引,然后通过TensorDataset()和DataLoader()编写一个实用的mini-batch迭代器

      def make_batch(sentences):
      	input_batch = []
          target_batch = []

          for sen in sentences:
              word = sen.split()
              input = [word_dict[n] for n in word[:-1]] # [0, 1], [0, 3], [0, 5]
              target = word_dict[word[-1]] # 2, 4, 6

              input_batch.append(input) # [[0, 1], [0, 3], [0, 5]]
              target_batch.append(target) # [2, 4, 6]

          return input_batch, target_batch

      input_batch, target_batch = make_batch(sentences)
      input_batch = torch.LongTensor(input_batch)
      target_batch = torch.LongTensor(target_batch)

      dataset = Data.TensorDataset(input_batch, target_batch)
      loader = Data.DataLoader(dataset=dataset, batch_size=16, shuffle=True)

      class NNLM(nn.Module):
        def __init__(self):
          super(NNLM, self).__init__()
          self.C = nn.Embedding(n_class, m)
          self.H = nn.Parameter(torch.randn(n_step * m, n_hidden).type(dtype))
          self.W = nn.Parameter(torch.randn(n_step * m, n_class).type(dtype))
          self.d = nn.Parameter(torch.randn(n_hidden).type(dtype))
          self.U = nn.Parameter(torch.randn(n_hidden, n_class).type(dtype))
          self.b = nn.Parameter(torch.randn(n_class).type(dtype))

        def forward(self, X):
          '''
          X: [batch_size, n_step]
          '''
          X = self.C(X) # [batch_size, n_step] => [batch_size, n_step, m]
          X = X.view(-1, n_step * m) # [batch_size, n_step * m]
          hidden_out = torch.tanh(self.d + torch.mm(X, self.H)) # [batch_size, n_hidden]
          output = self.b + torch.mm(X, self.W) + torch.mm(hidden_out, self.U) # [batch_size, n_class]
          return output

      model = NNLM()
      criterion = nn.CrossEntropyLoss()
      optimizer = optim.Adam(model.parameters(), lr=1e-3)


      nn.Parameter()的作用是将该参数添加进模型中,使其能够通过model.parameters()找到、管理、并且更新。更具体的来说就是:

      1. nn.Parameter()与nn.Module一起使用时会有一些特殊的属性,其会被自动加到 Module 的parameters()迭代器中
      2. 使用很简单:torch.nn.Parameter(data, requires_grad=True),其中data为tensor

      简单解释一下执行X=self.C(X)这一步之后X发生了什么变化,假设初始X=[[0, 1], [0, 3]]

      通过Embedding()之后,会将每一个词的索引,替换为对应的词向量,例如love这个词的索引是3,通过查询Word Embedding表得到行索引为3的向量为[0.2, 0.1],于是就会将原来X中3的值替换为该向量,所有值都替换完之后,X=[[[0.3, 0.8], [0.2, 0.4]], [[0.3, 0.8], [0.2, 0.1]]]

      # Training
      for epoch in range(5000):
        for batch_x, batch_y in loader:
          optimizer.zero_grad()
          output = model(batch_x)

          # output : [batch_size, n_class], batch_y : [batch_size] (LongTensor, not one-hot)
          loss = criterion(output, batch_y)
          if (epoch + 1)%1000 == 0:
              print('Epoch:', '%04d' % (epoch + 1), 'cost =', '{:.6f}'.format(loss))

          loss.backward()
          optimizer.step()

      # Predict
      predict = model(input_batch).data.max(1, keepdim=True)[1]

      # Test
      print([sen.split()[:n_step] for sen in sentences], '->', [number_dict[n.item()] for n in predict.squeeze()])


      完整代码:

      # code by Tae Hwan Jung @graykode, modify by wmathor
      import torch
      import torch.nn as nn
      import torch.optim as optim
      import torch.utils.data as Data

      dtype = torch.FloatTensor

      sentences = [ "i like dog", "i love coffee", "i hate milk"]

      word_list = " ".join(sentences).split() # ['i', 'like', 'dog', 'dog', 'i', 'love', 'coffee', 'i', 'hate', 'milk']
      word_list = list(set(word_list)) # ['i', 'like', 'dog', 'love', 'coffee', 'hate', 'milk']
      word_dict = {w: i for i, w in enumerate(word_list)} # {'i':0, 'like':1, 'dog':2, 'love':3, 'coffee':4, 'hate':5, 'milk':6}
      number_dict = {i: w for i, w in enumerate(word_list)} # {0:'i', 1:'like', 2:'dog', 3:'love', 4:'coffee', 5:'hate', 6:'milk'}
      n_class = len(word_dict) # number of Vocabulary, just like |V|, in this task n_class=7

      # NNLM(Neural Network Language Model) Parameter
      n_step = len(sentences[0].split())-1 # n-1 in paper, look back n_step words and predict next word. In this task n_step=2
      n_hidden = 2 # h in paper
      m = 2 # m in paper, word embedding dim

      def make_batch(sentences):
        input_batch = []
        target_batch = []

        for sen in sentences:
          word = sen.split()
          input = [word_dict[n] for n in word[:-1]] # [0, 1], [0, 3], [0, 5]
          target = word_dict[word[-1]] # 2, 4, 6

          input_batch.append(input) # [[0, 1], [0, 3], [0, 5]]
          target_batch.append(target) # [2, 4, 6]

        return input_batch, target_batch

      input_batch, target_batch = make_batch(sentences)
      input_batch = torch.LongTensor(input_batch)
      target_batch = torch.LongTensor(target_batch)

      dataset = Data.TensorDataset(input_batch, target_batch)
      loader = Data.DataLoader(dataset=dataset, batch_size=16, shuffle=True)

      class NNLM(nn.Module):
        def __init__(self):
          super(NNLM, self).__init__()
          self.C = nn.Embedding(n_class, m)
          self.H = nn.Parameter(torch.randn(n_step * m, n_hidden).type(dtype))
          self.W = nn.Parameter(torch.randn(n_step * m, n_class).type(dtype))
          self.d = nn.Parameter(torch.randn(n_hidden).type(dtype))
          self.U = nn.Parameter(torch.randn(n_hidden, n_class).type(dtype))
          self.b = nn.Parameter(torch.randn(n_class).type(dtype))

        def forward(self, X):
          '''
          X: [batch_size, n_step]
          '''
          X = self.C(X) # [batch_size, n_step] => [batch_size, n_step, m]
          X = X.view(-1, n_step * m) # [batch_size, n_step * m]
          hidden_out = torch.tanh(self.d + torch.mm(X, self.H)) # [batch_size, n_hidden]
          output = self.b + torch.mm(X, self.W) + torch.mm(hidden_out, self.U) # [batch_size, n_class]
          return output

      model = NNLM()
      criterion = nn.CrossEntropyLoss()
      optimizer = optim.Adam(model.parameters(), lr=1e-3)

      # Training
      for epoch in range(5000):
        for batch_x, batch_y in loader:
          optimizer.zero_grad()
          output = model(batch_x)

          # output : [batch_size, n_class], batch_y : [batch_size] (LongTensor, not one-hot)
          loss = criterion(output, batch_y)
          if (epoch + 1)%1000 == 0:
              print('Epoch:', '%04d' % (epoch + 1), 'cost =', '{:.6f}'.format(loss))

          loss.backward()
          optimizer.step()

      # Predict
      predict = model(input_batch).data.max(1, keepdim=True)[1]

      # Test
      print([sen.split()[:n_step] for sen in sentences], '->', [number_dict[n.item()] for n in predict.squeeze()])


      这个代码一开始是在GitHub的一个项目中给出的,下面参考文献给出了链接,代码本身写的没有问题,但是其中有一行注释有问题,就是X=X.view(-1, n_step*m)后面的注释,我很确信我写的是正确的。下面两篇参考文献都是一样的错误,需要注意一下

      参考文献

      A Neural Probabilitic Language Model 论文阅读及实战

      NLP-tutorial
