本文介绍一下如何使用PyTorch复现TextRNN，实现预测一句话的下一个词

参考这篇论文Finding Structure in Time(1990)，如果你对RNN有一定的了解，实际上不用看，仔细看我代码如何实现即可。如果你对RNN不太了解，请仔细阅读我这篇文章RNN Layer，结合PyTorch讲的很详细

现在问题的背景是，我有n句话，每句话都由且仅由3个单词组成。我要做的是，将每句话的前两个单词作为输入，最后一词作为输出，训练一个RNN模型

导库

'''
  code by Tae Hwan Jung(Jeff Jung) @graykode, modify by wmathor
'''
import torch
import numpy as np
import torch.nn as nn
import torch.optim as optim
import torch.utils.data as Data

dtype = torch.FloatTensor

准备数据

sentences = [ "i like dog", "i love coffee", "i hate milk"]

word_list = " ".join(sentences).split()
vocab = list(set(word_list))
word2idx = {w: i for i, w in enumerate(vocab)}
idx2word = {i: w for i, w in enumerate(vocab)}
n_class = len(vocab)

预处理数据，构建Dataset，定义DataLoader，输入数据用one-hot编码

# TextRNN Parameter
batch_size = 2
n_step = 2 # number of cells(= number of Step)
n_hidden = 5 # number of hidden units in one cell

def make_data(sentences):
    input_batch = []
    target_batch = []

    for sen in sentences:
        word = sen.split()
        input = [word2idx[n] for n in word[:-1]]
        target = word2idx[word[-1]]

        input_batch.append(np.eye(n_class)[input])
        target_batch.append(target)

    return input_batch, target_batch

input_batch, target_batch = make_data(sentences)
input_batch, target_batch = torch.Tensor(input_batch), torch.LongTensor(target_batch)
dataset = Data.TensorDataset(input_batch, target_batch)
loader = Data.DataLoader(dataset, batch_size, True)

以上的代码我想大家应该都没有问题，接下来就是定义网络架构

class TextRNN(nn.Module):
    def __init__(self):
        super(TextRNN, self).__init__()
        self.rnn = nn.RNN(input_size=n_class, hidden_size=n_hidden)
        # fc
        self.fc = nn.Linear(n_hidden, n_class)

    def forward(self, hidden, X):
        # X: [batch_size, n_step, n_class]
        X = X.transpose(0, 1) # X : [n_step, batch_size, n_class]
        out, hidden = self.rnn(X, hidden)
        # out : [n_step, batch_size, num_directions(=1) * n_hidden]
        # hidden : [num_layers(=1) * num_directions(=1), batch_size, n_hidden]
        out = out[-1] # [batch_size, num_directions(=1) * n_hidden] ⭐
        model = self.fc(out)
        return model

model = TextRNN()
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)

以上代码每一步都值得说一下，首先是nn.RNN(input_size, hidden_size)的两个参数，input_size表示每个词的编码维度，由于我是用的one-hot编码，而不是WordEmbedding，所以input_size就等于词库的大小len(vocab)，即n_class。然后是hidden_size，这个参数没有固定的要求，你想将输入数据的维度转为多少维，就设定多少

对于通常的神经网络来说，输入数据的第一个维度一般都是batch_size。而PyTorch中nn.RNN()要求将batch_size放在第二个维度上，所以需要使用x.transpose(0, 1)将输入数据的第一个维度和第二个维度互换

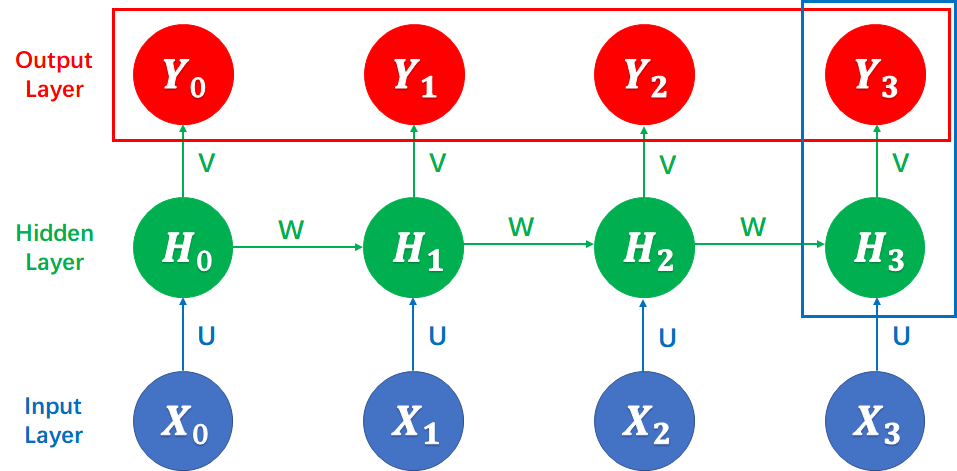

然后是rnn的输出，rnn会返回两个结果，即上面代码的out和hidden，关于这两个变量的区别，我在之前的博客也提到过了，如果不清楚，可以看我上面提到的RNN Layer这篇博客。这里简单说就是，out指的是下图的红框框起来的所有值；hidden指的是下图蓝框框起来的所有值。我们需要的是最后时刻的最后一层输出，即 $Y_3$ 的值，所以使用out=out[-1]将其获取

剩下的部分就比较简单了，训练测试即可

# Training
for epoch in range(5000):
    for x, y in loader:
      # hidden : [num_layers * num_directions, batch, hidden_size]
      hidden = torch.zeros(1, x.shape[0], n_hidden)
      # x : [batch_size, n_step, n_class]
      pred = model(hidden, x)

      # pred : [batch_size, n_class], y : [batch_size] (LongTensor, not one-hot)
      loss = criterion(pred, y)
      if (epoch + 1) % 1000 == 0:
          print('Epoch:', '%04d' % (epoch + 1), 'cost =', '{:.6f}'.format(loss))

      optimizer.zero_grad()
      loss.backward()
      optimizer.step()

input = [sen.split()[:2] for sen in sentences]
# Predict
hidden = torch.zeros(1, len(input), n_hidden)
predict = model(hidden, input_batch).data.max(1, keepdim=True)[1]
print([sen.split()[:2] for sen in sentences], '->', [idx2word[n.item()] for n in predict.squeeze()])

完整代码如下

'''
  code by Tae Hwan Jung(Jeff Jung) @graykode, modify by wmathor
'''
import torch
import numpy as np
import torch.nn as nn
import torch.optim as optim
import torch.utils.data as Data

dtype = torch.FloatTensor

sentences = [ "i like dog", "i love coffee", "i hate milk"]

word_list = " ".join(sentences).split()
vocab = list(set(word_list))
word2idx = {w: i for i, w in enumerate(vocab)}
idx2word = {i: w for i, w in enumerate(vocab)}
n_class = len(vocab)

# TextRNN Parameter
batch_size = 2
n_step = 2 # number of cells(= number of Step)
n_hidden = 5 # number of hidden units in one cell

def make_data(sentences):
    input_batch = []
    target_batch = []

    for sen in sentences:
        word = sen.split()
        input = [word2idx[n] for n in word[:-1]]
        target = word2idx[word[-1]]

        input_batch.append(np.eye(n_class)[input])
        target_batch.append(target)

    return input_batch, target_batch

input_batch, target_batch = make_data(sentences)
input_batch, target_batch = torch.Tensor(input_batch), torch.LongTensor(target_batch)
dataset = Data.TensorDataset(input_batch, target_batch)
loader = Data.DataLoader(dataset, batch_size, True)

class TextRNN(nn.Module):
    def __init__(self):
        super(TextRNN, self).__init__()
        self.rnn = nn.RNN(input_size=n_class, hidden_size=n_hidden)
        # fc
        self.fc = nn.Linear(n_hidden, n_class)

    def forward(self, hidden, X):
        # X: [batch_size, n_step, n_class]
        X = X.transpose(0, 1) # X : [n_step, batch_size, n_class]
        out, hidden = self.rnn(X, hidden)
        # out : [n_step, batch_size, num_directions(=1) * n_hidden]
        # hidden : [num_layers(=1) * num_directions(=1), batch_size, n_hidden]
        out = out[-1] # [batch_size, num_directions(=1) * n_hidden] ⭐
        model = self.fc(out)
        return model

model = TextRNN()
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)

# Training
for epoch in range(5000):
    for x, y in loader:
      # hidden : [num_layers * num_directions, batch, hidden_size]
      hidden = torch.zeros(1, x.shape[0], n_hidden)
      # x : [batch_size, n_step, n_class]
      pred = model(hidden, x)

      # pred : [batch_size, n_class], y : [batch_size] (LongTensor, not one-hot)
      loss = criterion(pred, y)
      if (epoch + 1) % 1000 == 0:
          print('Epoch:', '%04d' % (epoch + 1), 'cost =', '{:.6f}'.format(loss))

      optimizer.zero_grad()
      loss.backward()
      optimizer.step()

input = [sen.split()[:2] for sen in sentences]
# Predict
hidden = torch.zeros(1, len(input), n_hidden)
predict = model(hidden, input_batch).data.max(1, keepdim=True)[1]
print([sen.split()[:2] for sen in sentences], '->', [idx2word[n.item()] for n in predict.squeeze()])
